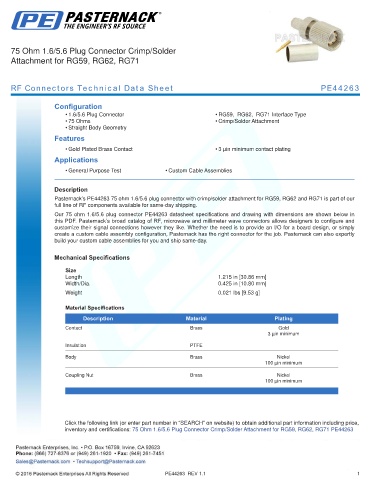

75 Ohm 1.6/5.6 Plug Connector Crimp/Solder
Attachment for RG59, RG62, RG71

RF Connectors Technical Data Sheet PE44263

Configuration
• 1.6/5.6 Plug Connector • RG59, RG62, RG71 Interface Type
• 75 Ohms • Crimp/Solder Attachment
• Straight Body Geometry
Features
• Gold Plated Brass Contact • 3 µin minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44263 75 ohm 1.6/5.6 plug connector with crimp/solder attachment for RG59, RG62 and RG71 is part of our
full line of RF components available for same-day shipping.
Our 75 ohm 1.6/5.6 plug connector PE44263 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.215 in [30.86 mm]
Width/Dia. 0.425 in [10.80 mm]
.
Weight 0.021 lbs [9.53 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
3 µin minimum
Insulation PTFE

Body Brass Nickel
100 µin minimum

Coupling Nut Brass Nickel
100 µin minimum
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm 1.6/5.6 Plug Connector Crimp/Solder Attachment for RG59, RG62, RG71 PE44263

PE44263 REV 1.1 1
