75 Ohm 1.6/5.6 Jack Bulkhead Connector Solder
Attachment Thru Hole PCB, .362 inch Diameter

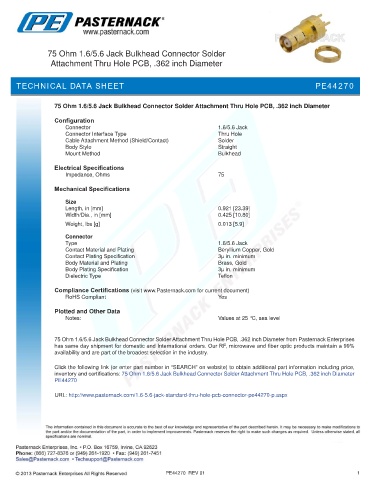

TECHNICAL DATA SHEET PE44270

75 Ohm 1.6/5.6 Jack Bulkhead Connector Solder Attachment Thru Hole PCB, .362 inch Diameter

Configuration
Connector 1.6/5.6 Jack
Connector Interface Type Thru Hole
Cable Attachment Method (Shield/Contact) Solder
Body Style Straight
Mount Method Bulkhead

Electrical Specifications
Impedance, Ohms 75

Mechanical Specifications

Size
Length, in [mm] 0.921 [23.39]
Width/Dia., in [mm] 0.425 [10.80]
.
Weight, lbs [g] 0.013 [5.9]
Connector
Type 1.6/5.6 Jack
Contact Material and Plating Beryllium Copper, Gold
Contact Plating Specification 3µ in. minimum
Body Material and Plating Brass, Gold
Body Plating Specification 3µ in. minimum
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

75 Ohm 1.6/5.6 Jack Bulkhead Connector Solder Attachment Thru Hole PCB, .362 inch Diameter from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm 1.6/5.6 Jack Bulkhead Connector Solder Attachment Thru Hole PCB, .362 inch Diameter
PE44270

URL: http://www.pasternack.com/1.6-5.6-jack-standard-thru-hole-pcb-connector-pe44270-p.aspx

PE44270 REV 01 1
