75 Ohm 1.6/5.6 Jack Right Angle Bulkhead Connector Crimp/
Solder Attachment For RG179, RG187, .362 inch DD Hole

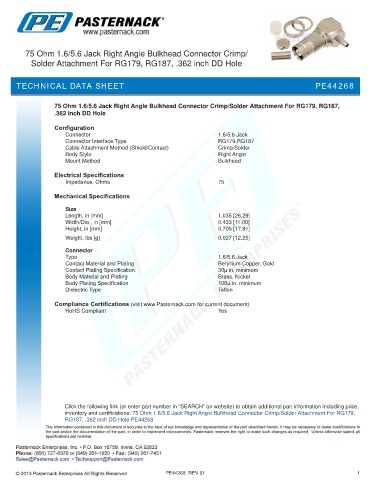

TECHNICAL DATA SHEET PE44268

75 Ohm 1.6/5.6 Jack Right Angle Bulkhead Connector Crimp/Solder Attachment For RG179, RG187,
.362 inch DD Hole

Configuration
Connector 1.6/5.6 Jack
Connector Interface Type RG179,RG187
Cable Attachment Method (Shield/Contact) Crimp/Solder
Body Style Right Angle
Mount Method Bulkhead

Electrical Specifications
Impedance, Ohms 75

Mechanical Specifications
Size
Length, in [mm] 1.035 [26.29]
Width/Dia., in [mm] 0.433 [11.00]
Height, in [mm] 0.705 [17.91]
.
Weight, lbs [g] 0.027 [12.25]
Connector
Type 1.6/5.6 Jack
Contact Material and Plating Beryllium Copper, Gold
Contact Plating Specification 30µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 100µ in. minimum
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm 1.6/5.6 Jack Right Angle Bulkhead Connector Crimp/Solder Attachment For RG179,
RG187, .362 inch DD Hole PE44268

PE44268 REV 01 1
