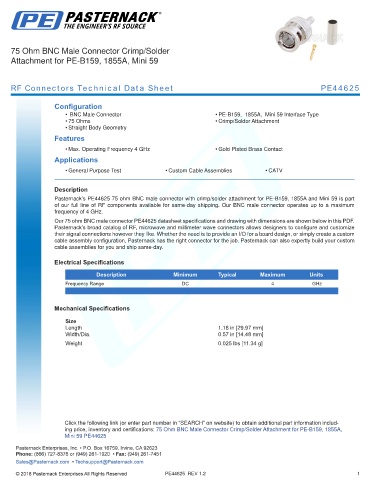

75 Ohm BNC Male Connector Crimp/Solder
Attachment for PE-B159, 1855A, Mini 59

RF Connectors Technical Data Sheet PE44625

Configuration
• BNC Male Connector • PE-B159, 1855A, Mini 59 Interface Type
• 75 Ohms • Crimp/Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 4 GHz • Gold Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies • CATV
.
Description
Pasternack’s PE44625 75 ohm BNC male connector with crimp/solder attachment for PE-B159, 1855A and Mini 59 is part
of our full line of RF components available for same-day shipping. Our BNC male connector operates up to a maximum
frequency of 4 GHz.
Our 75 ohm BNC male connector PE44625 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
.

Mechanical Specifications
Size
Length 1.18 in [29.97 mm]
Width/Dia. 0.57 in [14.48 mm]
.
Weight 0.025 lbs [11.34 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information includ-
ing price, inventory and certifications: 75 Ohm BNC Male Connector Crimp/Solder Attachment for PE-B159, 1855A, -
Mini 59 PE44625 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE44625 REV 1.2 1
