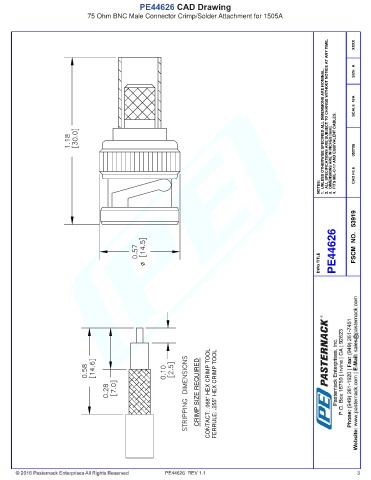

PE44626 CAD Drawing
75 Ohm BNC Male Connector Crimp/Solder Attachment for 1505A

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 052708

NOTES: CAD FILE

PE44626 FSCM NO. 53919

DWG TITLE

CRIMP SIZE REQUIRED CONTACT: .068" HEX CRIMP TOOL FERRULE: .255" HEX CRIMP TOOL

PE44626 REV 1.1 3
