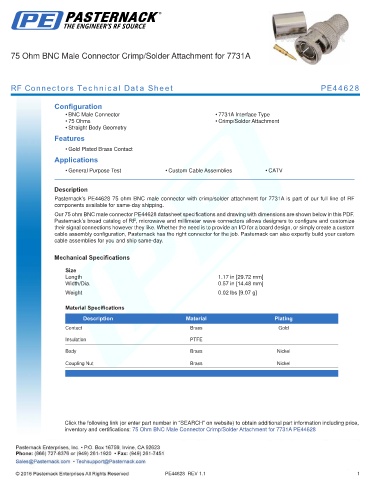

75 Ohm BNC Male Connector Crimp/Solder Attachment for 7731A

RF Connectors Technical Data Sheet PE44628

Configuration
• BNC Male Connector • 7731A Interface Type
• 75 Ohms • Crimp/Solder Attachment
• Straight Body Geometry
Features
• Gold Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies • CATV
.
Description
Pasternack’s PE44628 75 ohm BNC male connector with crimp/solder attachment for 7731A is part of our full line of RF
components available for same-day shipping.
Our 75 ohm BNC male connector PE44628 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.17 in [29.72 mm]
Width/Dia. 0.57 in [14.48 mm]
.
Weight 0.02 lbs [9.07 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
Insulation PTFE

Body Brass Nickel
Coupling Nut Brass Nickel
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Male Connector Crimp/Solder Attachment for 7731A PE44628

PE44628 REV 1.1 1
