75 Ohm BNC Male Connector Crimp/Solder
Attachment For 1505A, High Definition

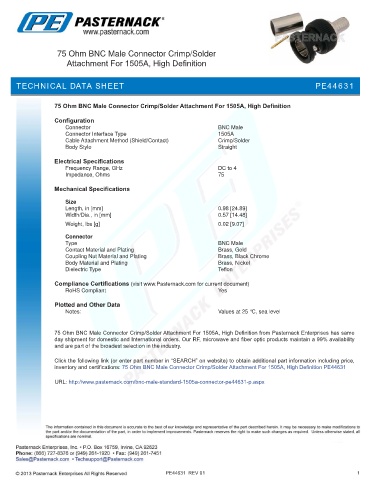

TECHNICAL DATA SHEET PE44631

75 Ohm BNC Male Connector Crimp/Solder Attachment For 1505A, High Definition

Configuration
Connector BNC Male
Connector Interface Type 1505A
Cable Attachment Method (Shield/Contact) Crimp/Solder
Body Style Straight
Electrical Specifications
Frequency Range, GHz DC to 4
Impedance, Ohms 75

Mechanical Specifications

Size
Length, in [mm] 0.98 [24.89]
Width/Dia., in [mm] 0.57 [14.48]
.
Weight, lbs [g] 0.02 [9.07]
Connector
Type BNC Male
Contact Material and Plating Brass, Gold
Coupling Nut Material and Plating Brass, Black Chrome
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

75 Ohm BNC Male Connector Crimp/Solder Attachment For 1505A, High Definition from Pasternack Enterprises has same
day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability
and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Male Connector Crimp/Solder Attachment For 1505A, High Definition PE44631

URL: http://www.pasternack.com/bnc-male-standard-1505a-connector-pe44631-p.aspx

PE44631 REV 01 1
