BNC Male Connector Crimp/Solder Attachment For 735A

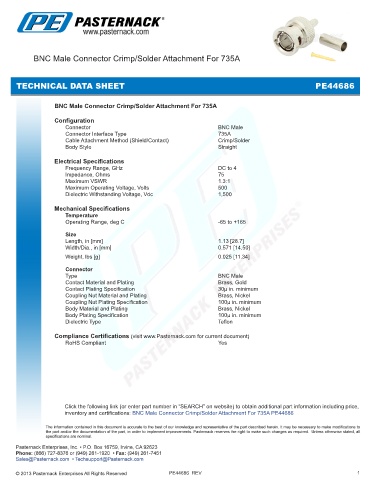

TECHNICAL DATA SHEET PE44686

BNC Male Connector Crimp/Solder Attachment For 735A

Configuration
Connector BNC Male
Connector Interface Type 735A
Cable Attachment Method (Shield/Contact) Crimp/Solder
Body Style Straight
Electrical Specifications
Frequency Range, GHz DC to 4
Impedance, Ohms 75
Maximum VSWR 1.3:1
Maximum Operating Voltage, Volts 500
Dielectric Withstanding Voltage, Vdc 1,500

Mechanical Specifications
Temperature
Operating Range, deg C -65 to +165

Size
Length, in [mm] 1.13 [28.7]
Width/Dia., in [mm] 0.571 [14.50]
.
Weight, lbs [g] 0.025 [11.34]
Connector
Type BNC Male
Contact Material and Plating Brass, Gold
Contact Plating Specification 30µ in. minimum
Coupling Nut Material and Plating Brass, Nickel
Coupling Nut Plating Specification 100µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 100µ in. minimum
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male Connector Crimp/Solder Attachment For 735A PE44686

PE44686 REV 1
