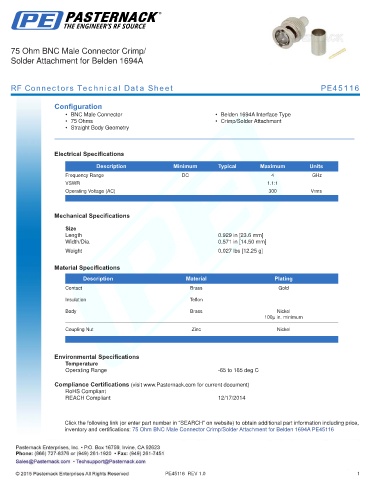

75 Ohm BNC Male Connector Crimp/
Solder Attachment for Belden 1694A
RF Connectors Technical Data Sheet PE45116
Configuration
• BNC Male Connector • Belden 1694A Interface Type
• 75 Ohms • Crimp/Solder Attachment
• Straight Body Geometry
.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
VSWR 1.1:1
Operating Voltage (AC) 300 Vrms
.
Mechanical Specifications
Size
Length 0.929 in [23.6 mm]
Width/Dia. 0.571 in [14.50 mm]
.
Weight 0.027 lbs [12.25 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
Insulation Teflon
Body Brass Nickel
100µ in. minimum
Coupling Nut Zinc Nickel
.
Environmental Specifications
Temperature
Operating Range -65 to 165 deg C
Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant 12/17/2014
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Male Connector Crimp/Solder Attachment for Belden 1694A PE45116
PE45116 REV 1.0 1
