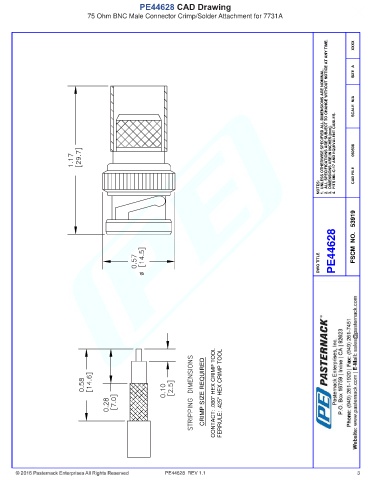

PE44628 CAD Drawing
75 Ohm BNC Male Connector Crimp/Solder Attachment for 7731A
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 060508
NOTES: CAD FILE
PE44628 FSCM NO. 53919
DWG TITLE
CRIMP SIZE REQUIRED CONTACT: .080" HEX CRIMP TOOL FERRULE: .425" HEX CRIMP TOOL
PE44628 REV 1.1 3
