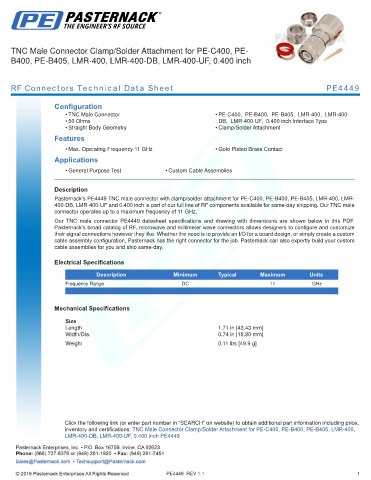

TNC Male Connector Clamp/Solder Attachment for PE-C400, PE-
B400, PE-B405, LMR-400, LMR-400-DB, LMR-400-UF, 0.400 inch

RF Connectors Technical Data Sheet PE4449

Configuration
• TNC Male Connector • PE-C400, PE-B400, PE-B405, LMR-400, LMR-400-
• 50 Ohms DB, LMR-400-UF, 0.400 inch Interface Type
• Straight Body Geometry • Clamp/Solder Attachment
Features
• Max. Operating Frequency 11 GHz • Gold Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4449 TNC male connector with clamp/solder attachment for PE-C400, PE-B400, PE-B405, LMR-400, LMR-
400-DB, LMR-400-UF and 0.400 inch is part of our full line of RF components available for same-day shipping. Our TNC male
connector operates up to a maximum frequency of 11 GHz.
Our TNC male connector PE4449 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
.

Mechanical Specifications

Size
Length 1.71 in [43.43 mm]
Width/Dia. 0.74 in [18.80 mm]
.
Weight 0.11 lbs [49.9 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male Connector Clamp/Solder Attachment for PE-C400, PE-B400, PE-B405, LMR-400,
LMR-400-DB, LMR-400-UF, 0.400 inch PE4449

PE4449 REV 1.1 1
