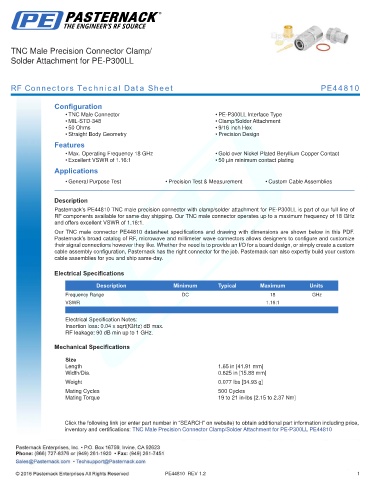

TNC Male Precision Connector Clamp/
Solder Attachment for PE-P300LL

RF Connectors Technical Data Sheet PE44810

Configuration
• TNC Male Connector • PE-P300LL Interface Type
• MIL-STD-348 • Clamp/Solder Attachment
• 50 Ohms • 9/16 inch Hex
• Straight Body Geometry • Precision Design
Features
• Max. Operating Frequency 18 GHz • Gold over Nickel Plated Beryllium Copper Contact
• Excellent VSWR of 1.16:1 • 50 µin minimum contact plating
Applications

• General Purpose Test • Precision Test & Measurement • Custom Cable Assemblies
.
Description
Pasternack’s PE44810 TNC male precision connector with clamp/solder attachment for PE-P300LL is part of our full line of
RF components available for same-day shipping. Our TNC male connector operates up to a maximum frequency of 18 GHz
and offers excellent VSWR of 1.16:1.
Our TNC male connector PE44810 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.16:1
.
Electrical Specification Notes:
Insertion loss: 0.04 x sqrt(fGHz) dB max.
RF leakage: 90 dB min up to 1 GHz.

Mechanical Specifications
Size
Length 1.65 in [41.91 mm]
Width/Dia. 0.625 in [15.88 mm]
.
Weight 0.077 lbs [34.93 g]
.
Mating Cycles 500 Cycles
Mating Torque 19 to 21 in-lbs [2.15 to 2.37 Nm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male Precision Connector Clamp/Solder Attachment for PE-P300LL PE44810

PE44810 REV 1.2 1
