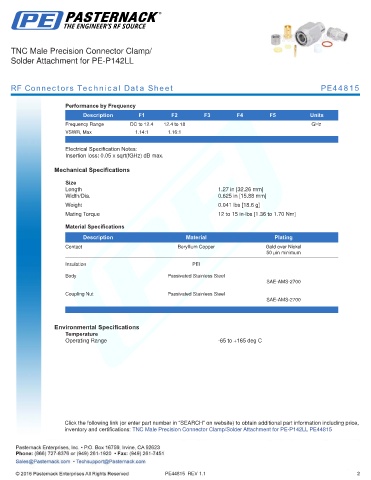

TNC Male Precision Connector Clamp/
Solder Attachment for PE-P142LL

RF Connectors Technical Data Sheet PE44815

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 12.4 12.4 to 18 GHz
VSWR, Max 1.14:1 1.16:1
.
Electrical Specification Notes:
Insertion loss: 0.05 x sqrt(fGHz) dB max.

Mechanical Specifications

Size
Length 1.27 in [32.26 mm]
Width/Dia. 0.625 in [15.88 mm]
.
Weight 0.041 lbs [18.6 g]
.
Mating Torque 12 to 15 in-lbs [1.36 to 1.70 Nm]
Material Specifications
Description Material Plating
Contact Beryllium Copper Gold over Nickel
50 µin minimum

Insulation PEI
Body Passivated Stainless Steel
SAE-AMS-2700

Coupling Nut Passivated Stainless Steel
SAE-AMS-2700
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male Precision Connector Clamp/Solder Attachment for PE-P142LL PE44815

PE44815 REV 1.1 2
