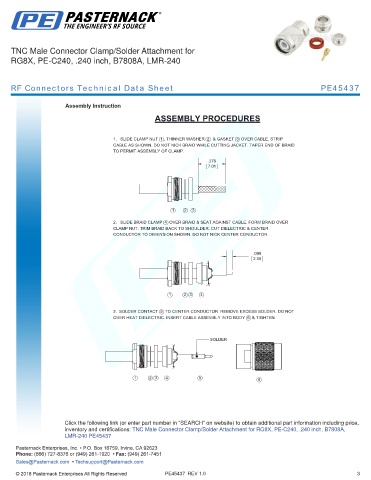

TNC Male Connector Clamp/Solder Attachment for
RG8X, PE-C240, .240 inch, B7808A, LMR-240

RF Connectors Technical Data Sheet PE45437

Assembly Instruction
ASSEMBLY PROCEDURES

1. SLIDE CLAMP NUT 1 , THINNER WASHER 2 & GASKET 3 OVER CABLE. STRIP
CABLE AS SHOWN. DO NOT NICK BRAID WHILE CUTTING JACKET. TAPER END OF BRAID
TO PERMIT ASSEMBLY OF CLAMP.
.276
7.01

1 2 3
2. SLIDE BRAID CLAMP 4 OVER BRAID & SEAT AGAINST CABLE. FORM BRAID OVER
CLAMP NUT. TRIM BRAID BACK TO SHOULDER. CUT DIELECTRIC & CENTER
CONDUCTOR TO DIMENSION SHOWN. DO NOT NICK CENTER CONDUCTOR.

.098
2.50

1 2 3 4

3. SOLDER CONTACT 5 TO CENTER CONDUCTOR. REMOVE EXCESS SOLDER. DO NOT
OVER HEAT DIELECTRIC. INSERT CABLE ASSEMBLY INTO BODY 6 & TIGHTEN.

SOLDER

1 2 3 4 5 6

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male Connector Clamp/Solder Attachment for RG8X, PE-C240, .240 inch, B7808A, -
LMR-240 PE45437 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE45437 REV 1.0 3
