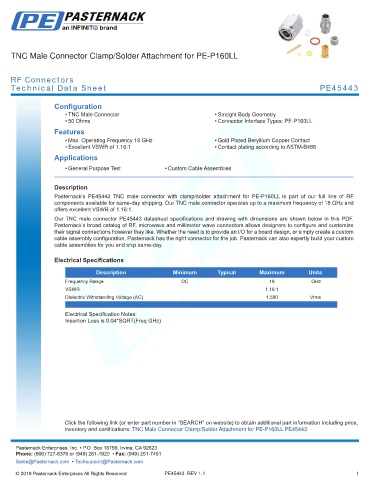

TNC Male Connector Clamp/Solder Attachment for PE-P160LL

RF Connectors
Technical Data Sheet PE45443

Configuration
• TNC Male Connector • Straight Body Geometry
• 50 Ohms • Connector Interface Types: PE-P160LL
Features
• Max. Operating Frequency 18 GHz • Gold Plated Beryllium Copper Contact
• Excellent VSWR of 1.16:1 • Contact plating according to ASTM-B488
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE45443 TNC male connector with clamp/solder attachment for PE-P160LL is part of our full line of RF
components available for same-day shipping. Our TNC male connector operates up to a maximum frequency of 18 GHz and
offers excellent VSWR of 1.16:1.
Our TNC male connector PE45443 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.16:1
Dielectric Withstanding Voltage (AC) 1,500 Vrms
.
Electrical Specification Notes:
Insertion Loss is 0.04*SQRT(Freq GHz)
.
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male Connector Clamp/Solder Attachment for PE-P160LL PE45443 -
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE45443 REV 1.1 1
