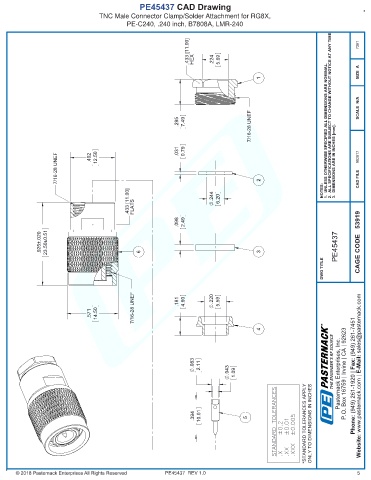

PE45437 CAD Drawing
TNC Male Connector Clamp/Solder Attachment for RG8X,
PE-C240, .240 inch, B7808A, LMR-240

.433 [11.00] HEX .224 5.69 7361

SIZE A

1

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A
.295 7.49 7/16-28 UNEF

1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

.031 0.79
7/16-28 UNEF .492 12.50 2 3. DIMENSIONS ARE IN INCHES [mm]. 092817 CAD FILE

.433 [11.00] FLATS .244 6.20 NOTES:

.098 2.49

.925±.020 23.50±0.51 PE45437 CAGE CODE 53919

6 3
DWG TITLE

7/16-28 UNEF .181 4.60 .220 5.59
.571 14.50
R
4
P.O. Box 16759 | Irvine | CA | 92623
THE ENGINEER'S RF SOURCE
Pasternack Enterprises, Inc.

.083 2.11 .043 1.09 Pasternack does not make Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com

STANDARD TOLERANCES

.394 10.01 5
.XXX ±0.005
.XX ±0.01
.X ±0.2
*STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE45437 REV 1.0 5
