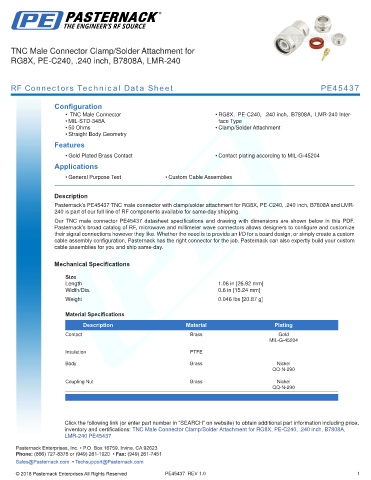

TNC Male Connector Clamp/Solder Attachment for
RG8X, PE-C240, .240 inch, B7808A, LMR-240

RF Connectors Technical Data Sheet PE45437

Configuration
• TNC Male Connector • RG8X, PE-C240, .240 inch, B7808A, LMR-240 Inter-
• MIL-STD-348A face Type
• 50 Ohms • Clamp/Solder Attachment
• Straight Body Geometry
Features
• Gold Plated Brass Contact • Contact plating according to MIL-G-45204
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE45437 TNC male connector with clamp/solder attachment for RG8X, PE-C240, .240 inch, B7808A and LMR-
240 is part of our full line of RF components available for same-day shipping.
Our TNC male connector PE45437 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications
Size
Length 1.06 in [26.92 mm]
Width/Dia. 0.6 in [15.24 mm]
.
Weight 0.046 lbs [20.87 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
MIL-G-45204
Insulation PTFE
Body Brass Nickel
QQ-N-290
Coupling Nut Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male Connector Clamp/Solder Attachment for RG8X, PE-C240, .240 inch, B7808A, -
LMR-240 PE45437 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE45437 REV 1.0 1
