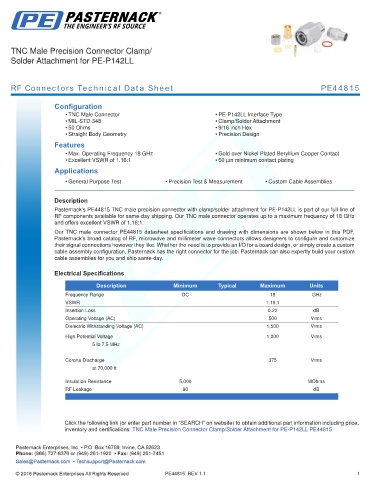

TNC Male Precision Connector Clamp/
Solder Attachment for PE-P142LL

RF Connectors Technical Data Sheet PE44815

Configuration
• TNC Male Connector • PE-P142LL Interface Type
• MIL-STD-348 • Clamp/Solder Attachment
• 50 Ohms • 9/16 inch Hex
• Straight Body Geometry • Precision Design
Features
• Max. Operating Frequency 18 GHz • Gold over Nickel Plated Beryllium Copper Contact
• Excellent VSWR of 1.16:1 • 50 µin minimum contact plating
Applications

• General Purpose Test • Precision Test & Measurement • Custom Cable Assemblies
.
Description
Pasternack’s PE44815 TNC male precision connector with clamp/solder attachment for PE-P142LL is part of our full line of
RF components available for same-day shipping. Our TNC male connector operates up to a maximum frequency of 18 GHz
and offers excellent VSWR of 1.16:1.
Our TNC male connector PE44815 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.16:1
Insertion Loss 0.22 dB
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
High Potential Voltage 1,000 Vrms
5 to 7.5 MHz

Corona Discharge 375 Vrms
at 70,000 ft

Insulation Resistance 5,000 MOhms
RF Leakage 90 dB
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male Precision Connector Clamp/Solder Attachment for PE-P142LL PE44815
