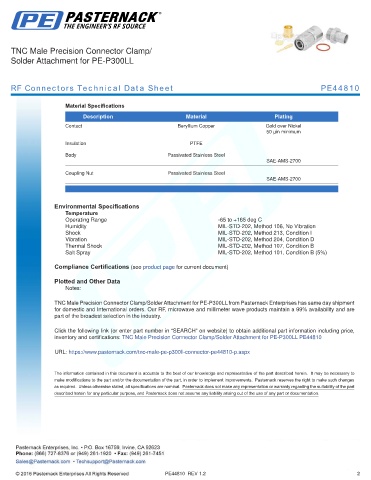

TNC Male Precision Connector Clamp/
Solder Attachment for PE-P300LL

RF Connectors Technical Data Sheet PE44810

Material Specifications
Description Material Plating
Contact Beryllium Copper Gold over Nickel
50 µin minimum

Insulation PTFE
Body Passivated Stainless Steel
SAE-AMS-2700

Coupling Nut Passivated Stainless Steel
SAE-AMS-2700
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
Humidity MIL-STD-202, Method 106, No Vibration
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Salt Spray MIL-STD-202, Method 101, Condition B (5%)

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

TNC Male Precision Connector Clamp/Solder Attachment for PE-P300LL from Pasternack Enterprises has same day shipment
for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are
part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male Precision Connector Clamp/Solder Attachment for PE-P300LL PE44810

URL: https://www.pasternack.com/tnc-male-pe-p300ll-connector-pe44810-p.aspx

PE44810 REV 1.2 2
