TNC Male Connector Clamp/Solder Attachment for PE-P160LL

RF Connectors
Technical Data Sheet PE45443

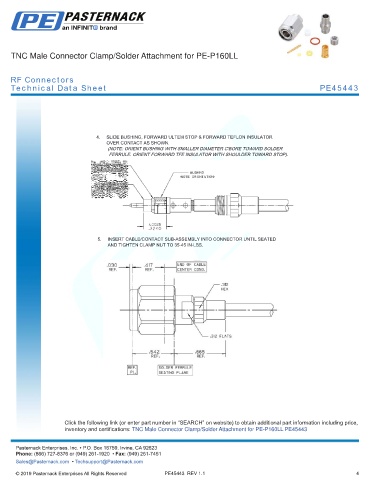

4. SLIDE BUSHING, FORWARD ULTEM STOP & FORWARD TEFLON INSULATOR
OVER CONTACT AS SHOWN.
(NOTE: ORIENT BUSHING WITH SMALLER DIAMETER C'BORE TOWARD SOLDER
FERRULE. ORIENT FORWARD TFE INSULATOR WITH SHOULDER TOWARD STOP).

5. INSERT CABLE/CONTACT SUB-ASSEMBLY INTO CONNECTOR UNTIL SEATED
AND TIGHTEN CLAMP NUT TO 35-45 IN-LBS.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male Connector Clamp/Solder Attachment for PE-P160LL PE45443 -
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE45443 REV 1.1 4
