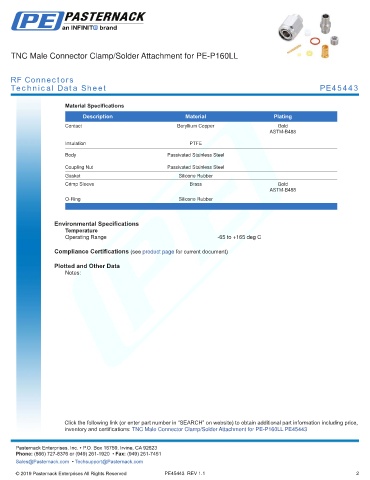

TNC Male Connector Clamp/Solder Attachment for PE-P160LL
RF Connectors
Technical Data Sheet PE45443
Material Specifications
Description Material Plating
Contact Beryllium Copper Gold
ASTM-B488
Insulation PTFE
Body Passivated Stainless Steel
Coupling Nut Passivated Stainless Steel
Gasket Silicone Rubber
Crimp Sleeve Brass Gold
ASTM-B488
O-Ring Silicone Rubber
.
Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male Connector Clamp/Solder Attachment for PE-P160LL PE45443 -
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE45443 REV 1.1 2
