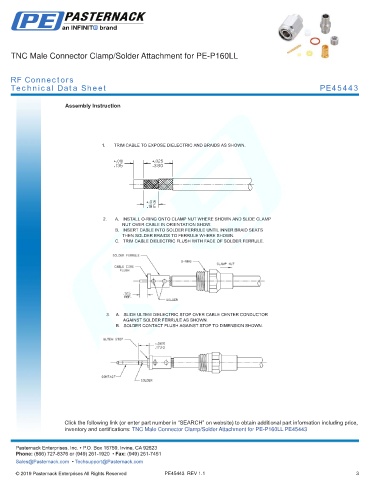

TNC Male Connector Clamp/Solder Attachment for PE-P160LL
RF Connectors
Technical Data Sheet PE45443
Assembly Instruction
1. TRIM CABLE TO EXPOSE DIELECTRIC AND BRAIDS AS SHOWN.
2. A. INSTALL O-RING ONTO CLAMP NUT WHERE SHOWN AND SLIDE CLAMP
NUT OVER CABLE IN ORIENTATION SHOW.
B. INSERT CABLE INTO SOLDER FERRULE UNTIL INNER BRAID SEATS
THEN SOLDER BRAIDS TO FERRULE WHERE SHOWN.
C. TRIM CABLE DIELECTRIC FLUSH WITH FACE OF SOLDER FERRULE.
3. A. SLIDE ULTEM DIELECTRIC STOP OVER CABLE CENTER CONDUCTOR
AGAINST SOLDER FERRULE AS SHOWN.
B. SOLDER CONTACT FLUSH AGAINST STOP TO DIMENSION SHOWN.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male Connector Clamp/Solder Attachment for PE-P160LL PE45443 -
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE45443 REV 1.1 3
