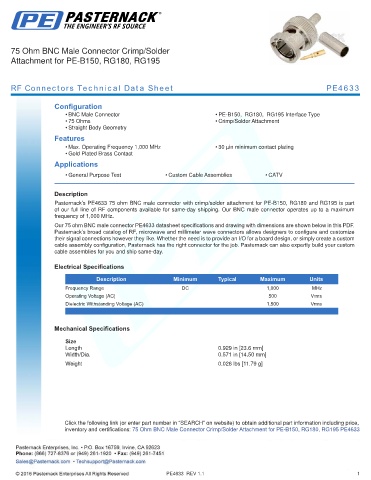

75 Ohm BNC Male Connector Crimp/Solder
Attachment for PE-B150, RG180, RG195

RF Connectors Technical Data Sheet PE4633

Configuration
• BNC Male Connector • PE-B150, RG180, RG195 Interface Type
• 75 Ohms • Crimp/Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 1,000 MHz • 30 µin minimum contact plating
• Gold Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies • CATV
.
Description
Pasternack’s PE4633 75 ohm BNC male connector with crimp/solder attachment for PE-B150, RG180 and RG195 is part
of our full line of RF components available for same-day shipping. Our BNC male connector operates up to a maximum
frequency of 1,000 MHz.
Our 75 ohm BNC male connector PE4633 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
.

Mechanical Specifications

Size
Length 0.929 in [23.6 mm]
Width/Dia. 0.571 in [14.50 mm]
.
Weight 0.026 lbs [11.79 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Male Connector Crimp/Solder Attachment for PE-B150, RG180, RG195 PE4633

PE4633 REV 1.1 1
