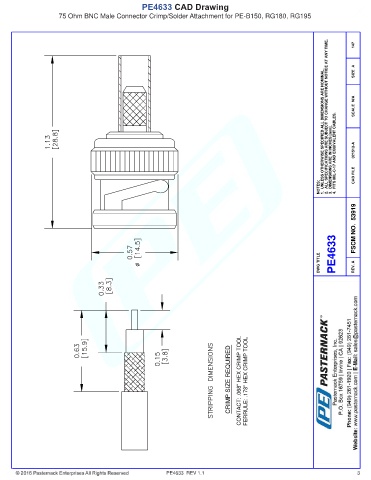

PE4633 CAD Drawing
75 Ohm BNC Male Connector Crimp/Solder Attachment for PE-B150, RG180, RG195

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
147

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 021513-A

NOTES: CAD FILE

FSCM NO. 53919

DWG TITLE PE4633 REV. A

CRIMP SIZE REQUIRED CONTACT: .068" HEX CRIMP TOOL FERRULE: .178" HEX CRIMP TOOL

PE4633 REV 1.1 3
