75 Ohm BNC Male Connector Clamp/Solder Attachment for RG6

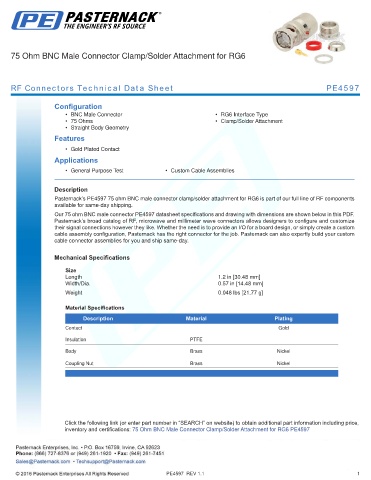

RF Connectors Technical Data Sheet PE4597

Configuration
• BNC Male Connector • RG6 Interface Type
• 75 Ohms • Clamp/Solder Attachment
• Straight Body Geometry
Features
• Gold Plated Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4597 75 ohm BNC male connector clamp/solder attachment for RG6 is part of our full line of RF components
available for same-day shipping.
Our 75 ohm BNC male connector PE4597 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable connector assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.2 in [30.48 mm]
Width/Dia. 0.57 in [14.48 mm]
.
Weight 0.048 lbs [21.77 g]
.
Material Specifications
Description Material Plating
Contact Gold
Insulation PTFE

Body Brass Nickel
Coupling Nut Brass Nickel
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Male Connector Clamp/Solder Attachment for RG6 PE4597

PE4597 REV 1.1 1
