Page 620 - TNC to Double Banana RF Connector Datasheets
P. 620

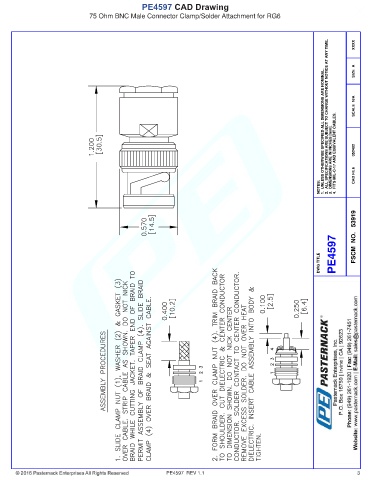

PE4597 CAD Drawing
75 Ohm BNC Male Connector Clamp/Solder Attachment for RG6
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 052402
NOTES: CAD FILE
DWG TITLE PE4597 FSCM NO. 53919
PE4597 REV 1.1 3
