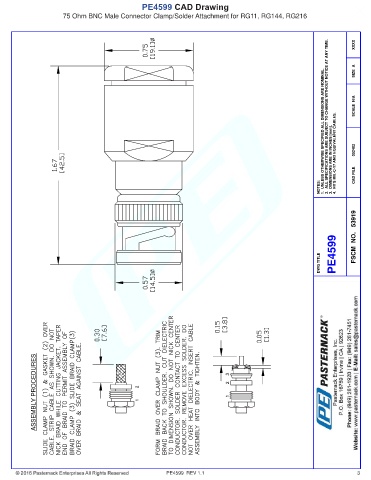

PE4599 CAD Drawing
75 Ohm BNC Male Connector Clamp/Solder Attachment for RG11, RG144, RG216
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 052402
NOTES: CAD FILE
DWG TITLE PE4599 FSCM NO. 53919
ASSEMBLY PROCEDURES
PE4599 REV 1.1 3
