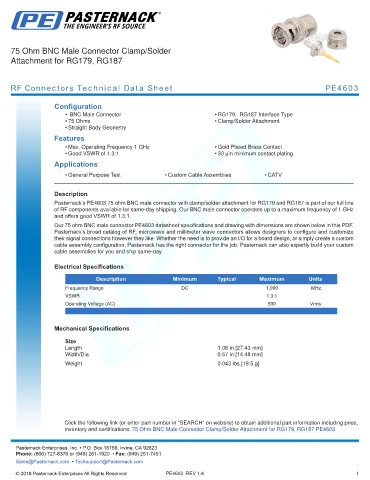

75 Ohm BNC Male Connector Clamp/Solder
Attachment for RG179, RG187

RF Connectors Technical Data Sheet PE4603

Configuration
• BNC Male Connector • RG179, RG187 Interface Type
• 75 Ohms • Clamp/Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 1 GHz • Gold Plated Brass Contact
• Good VSWR of 1.3:1 • 30 µin minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies • CATV
.
Description
Pasternack’s PE4603 75 ohm BNC male connector with clamp/solder attachment for RG179 and RG187 is part of our full line
of RF components available for same-day shipping. Our BNC male connector operates up to a maximum frequency of 1 GHz
and offers good VSWR of 1.3:1.
Our 75 ohm BNC male connector PE4603 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.3:1
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications

Size
Length 1.08 in [27.43 mm]
Width/Dia. 0.57 in [14.48 mm]
.
Weight 0.043 lbs [19.5 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Male Connector Clamp/Solder Attachment for RG179, RG187 PE4603 -
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE4603 REV 1.4 1
