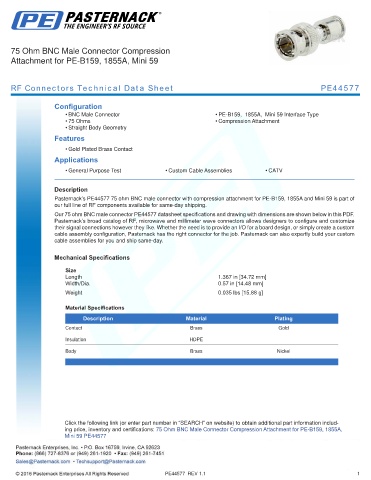

75 Ohm BNC Male Connector Compression
Attachment for PE-B159, 1855A, Mini 59

RF Connectors Technical Data Sheet PE44577

Configuration
• BNC Male Connector • PE-B159, 1855A, Mini 59 Interface Type
• 75 Ohms • Compression Attachment
• Straight Body Geometry
Features
• Gold Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies • CATV
.
Description
Pasternack’s PE44577 75 ohm BNC male connector with compression attachment for PE-B159, 1855A and Mini 59 is part of
our full line of RF components available for same-day shipping.
Our 75 ohm BNC male connector PE44577 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.367 in [34.72 mm]
Width/Dia. 0.57 in [14.48 mm]
.
Weight 0.035 lbs [15.88 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
Insulation HDPE

Body Brass Nickel
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information includ-
ing price, inventory and certifications: 75 Ohm BNC Male Connector Compression Attachment for PE-B159, 1855A,
Mini 59 PE44577

PE44577 REV 1.1 1
