75 Ohm BNC Male Connector Compression
Attachment For Mini 59, PE-B159

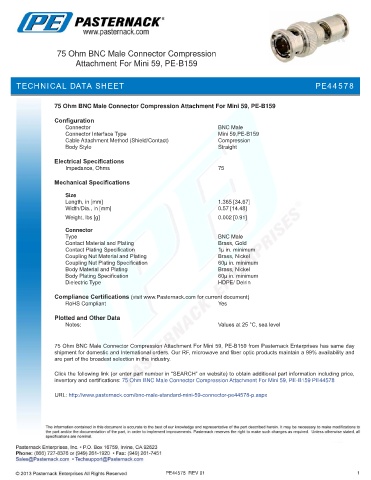

TECHNICAL DATA SHEET PE44578

75 Ohm BNC Male Connector Compression Attachment For Mini 59, PE-B159

Configuration
Connector BNC Male
Connector Interface Type Mini 59,PE-B159
Cable Attachment Method (Shield/Contact) Compression
Body Style Straight
Electrical Specifications
Impedance, Ohms 75

Mechanical Specifications

Size
Length, in [mm] 1.365 [34.67]
Width/Dia., in [mm] 0.57 [14.48]
.
Weight, lbs [g] 0.002 [0.91]

Connector
Type BNC Male
Contact Material and Plating Brass, Gold
Contact Plating Specification 1µ in. minimum
Coupling Nut Material and Plating Brass, Nickel
Coupling Nut Plating Specification 60µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 60µ in. minimum
Dielectric Type HDPE/ Delrin
Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

75 Ohm BNC Male Connector Compression Attachment For Mini 59, PE-B159 from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and
are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Male Connector Compression Attachment For Mini 59, PE-B159 PE44578

URL: http://www.pasternack.com/bnc-male-standard-mini-59-connector-pe44578-p.aspx

PE44578 REV 01 1
