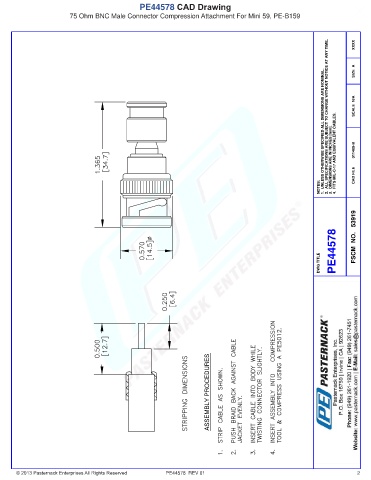

PE44578 CAD Drawing
75 Ohm BNC Male Connector Compression Attachment For Mini 59, PE-B159

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 011409-B

NOTES: CAD FILE

PE44578 FSCM NO. 53919

DWG TITLE

ASSEMBLY PROCEDURES

© 2013 Pasternack Enterprises All Rights Reserved PE44578 REV 01 2
