75 Ohm BNC Male Bulkhead Connector Solder
Attachment Solder Cup Terminal, .350 inch D Hole

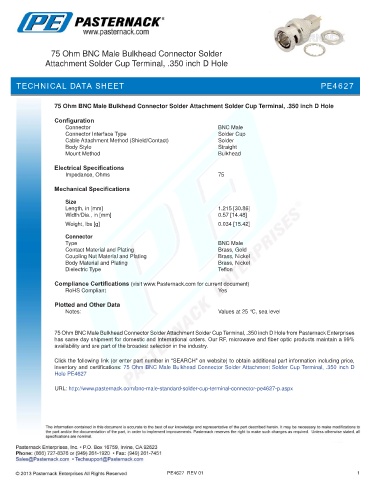

TECHNICAL DATA SHEET PE4627

75 Ohm BNC Male Bulkhead Connector Solder Attachment Solder Cup Terminal, .350 inch D Hole

Configuration
Connector BNC Male
Connector Interface Type Solder Cup
Cable Attachment Method (Shield/Contact) Solder
Body Style Straight
Mount Method Bulkhead

Electrical Specifications
Impedance, Ohms 75

Mechanical Specifications

Size
Length, in [mm] 1.215 [30.86]
Width/Dia., in [mm] 0.57 [14.48]
.
Weight, lbs [g] 0.034 [15.42]
Connector
Type BNC Male
Contact Material and Plating Brass, Gold
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

75 Ohm BNC Male Bulkhead Connector Solder Attachment Solder Cup Terminal, .350 inch D Hole from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Male Bulkhead Connector Solder Attachment Solder Cup Terminal, .350 inch D
Hole PE4627

URL: http://www.pasternack.com/bnc-male-standard-solder-cup-terminal-connector-pe4627-p.aspx

PE4627 REV 01 1
