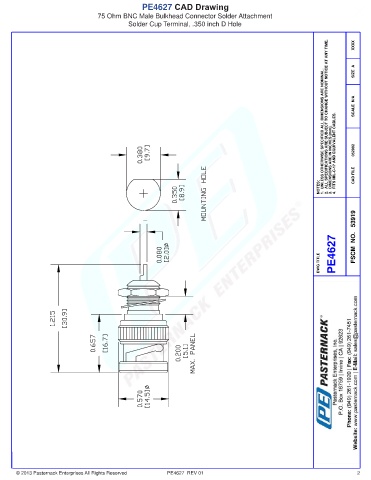

PE4627 CAD Drawing
75 Ohm BNC Male Bulkhead Connector Solder Attachment
Solder Cup Terminal, .350 inch D Hole

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 052902

NOTES: CAD FILE

DWG TITLE PE4627 FSCM NO. 53919
