75 Ohm BNC Male Connector Solder Attachment 4 Hole
Flange Solder Cup Terminal, .531 inch Hole Spacing

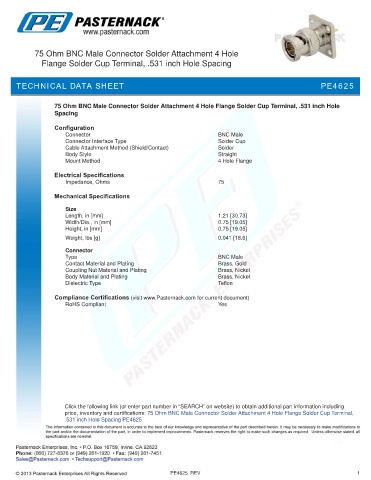

TECHNICAL DATA SHEET PE4625

75 Ohm BNC Male Connector Solder Attachment 4 Hole Flange Solder Cup Terminal, .531 inch Hole
Spacing

Configuration
Connector BNC Male
Connector Interface Type Solder Cup
Cable Attachment Method (Shield/Contact) Solder
Body Style Straight
Mount Method 4 Hole Flange

Electrical Specifications
Impedance, Ohms 75

Mechanical Specifications
Size
Length, in [mm] 1.21 [30.73]
Width/Dia., in [mm] 0.75 [19.05]
Height, in [mm] 0.75 [19.05]
.
Weight, lbs [g] 0.041 [18.6]
Connector
Type BNC Male
Contact Material and Plating Brass, Gold
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: 75 Ohm BNC Male Connector Solder Attachment 4 Hole Flange Solder Cup Terminal,
.531 inch Hole Spacing PE4625

PE4625 REV 1
