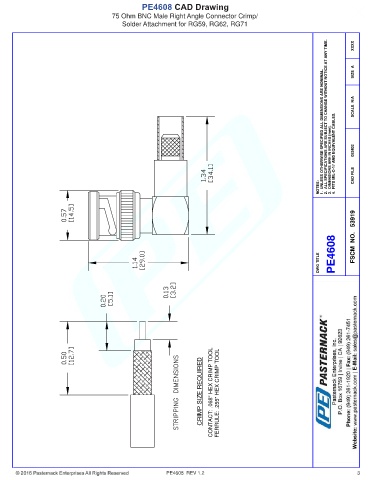

PE4608 CAD Drawing
75 Ohm BNC Male Right Angle Connector Crimp/
Solder Attachment for RG59, RG62, RG71

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 052402

NOTES: CAD FILE

DWG TITLE PE4608 FSCM NO. 53919

CRIMP SIZE REQUIRED CONTACT: .068" HEX CRIMP TOOL FERRULE: .255" HEX CRIMP TOOL

PE4608 REV 1.2 3
