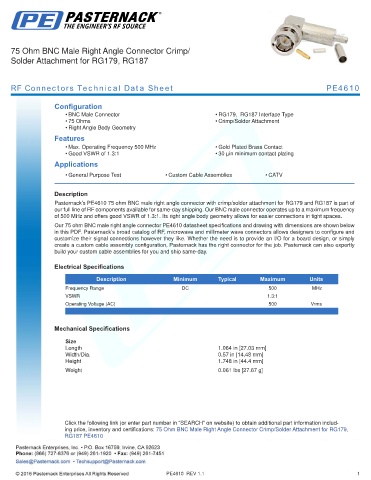

75 Ohm BNC Male Right Angle Connector Crimp/
Solder Attachment for RG179, RG187

RF Connectors Technical Data Sheet PE4610

Configuration
• BNC Male Connector • RG179, RG187 Interface Type
• 75 Ohms • Crimp/Solder Attachment
• Right Angle Body Geometry
Features
• Max. Operating Frequency 500 MHz • Gold Plated Brass Contact
• Good VSWR of 1.3:1 • 30 µin minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies • CATV
.
Description
Pasternack’s PE4610 75 ohm BNC male right angle connector with crimp/solder attachment for RG179 and RG187 is part of
our full line of RF components available for same-day shipping. Our BNC male connector operates up to a maximum frequency
of 500 MHz and offers good VSWR of 1.3:1. Its right angle body geometry allows for easier connections in tight spaces.
Our 75 ohm BNC male right angle connector PE4610 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 500 MHz
VSWR 1.3:1
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications

Size
Length 1.064 in [27.03 mm]
Width/Dia. 0.57 in [14.48 mm]
Height 1.748 in [44.4 mm]
.
Weight 0.061 lbs [27.67 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information includ-
ing price, inventory and certifications: 75 Ohm BNC Male Right Angle Connector Crimp/Solder Attachment for RG179,
RG187 PE4610

PE4610 REV 1.1 1
