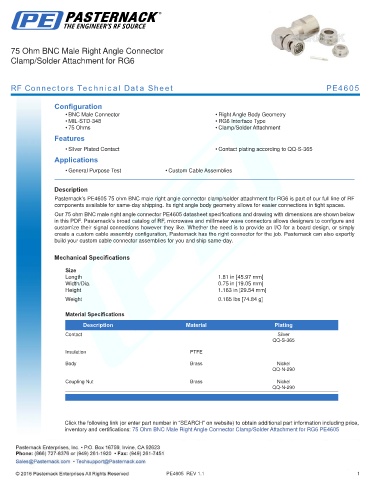

75 Ohm BNC Male Right Angle Connector
Clamp/Solder Attachment for RG6

RF Connectors Technical Data Sheet PE4605

Configuration
• BNC Male Connector • Right Angle Body Geometry
• MIL-STD-348 • RG6 Interface Type
• 75 Ohms • Clamp/Solder Attachment
Features
• Silver Plated Contact • Contact plating according to QQ-S-365
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4605 75 ohm BNC male right angle connector clamp/solder attachment for RG6 is part of our full line of RF
components available for same-day shipping. Its right angle body geometry allows for easier connections in tight spaces.
Our 75 ohm BNC male right angle connector PE4605 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.81 in [45.97 mm]
Width/Dia. 0.75 in [19.05 mm]
Height 1.163 in [29.54 mm]
.
Weight 0.165 lbs [74.84 g]
.
Material Specifications
Description Material Plating
Contact Silver
QQ-S-365
Insulation PTFE
Body Brass Nickel
QQ-N-290
Coupling Nut Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Male Right Angle Connector Clamp/Solder Attachment for RG6 PE4605

PE4605 REV 1.1 1
