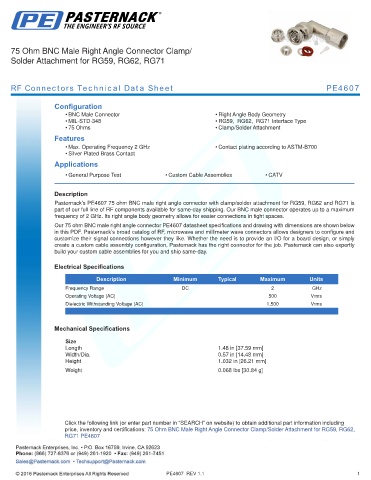

75 Ohm BNC Male Right Angle Connector Clamp/
Solder Attachment for RG59, RG62, RG71

RF Connectors Technical Data Sheet PE4607

Configuration
• BNC Male Connector • Right Angle Body Geometry
• MIL-STD-348 • RG59, RG62, RG71 Interface Type
• 75 Ohms • Clamp/Solder Attachment
Features
• Max. Operating Frequency 2 GHz • Contact plating according to ASTM-B700
• Silver Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies • CATV
.
Description
Pasternack’s PE4607 75 ohm BNC male right angle connector with clamp/solder attachment for RG59, RG62 and RG71 is
part of our full line of RF components available for same-day shipping. Our BNC male connector operates up to a maximum
frequency of 2 GHz. Its right angle body geometry allows for easier connections in tight spaces.
Our 75 ohm BNC male right angle connector PE4607 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 2 GHz
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
.

Mechanical Specifications

Size
Length 1.48 in [37.59 mm]
Width/Dia. 0.57 in [14.48 mm]
Height 1.032 in [26.21 mm]
.
Weight 0.068 lbs [30.84 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: 75 Ohm BNC Male Right Angle Connector Clamp/Solder Attachment for RG59, RG62,
RG71 PE4607

PE4607 REV 1.1 1
