75 Ohm BNC Male Right Angle Connector Clamp/
Solder Attachment For RG179, RG187

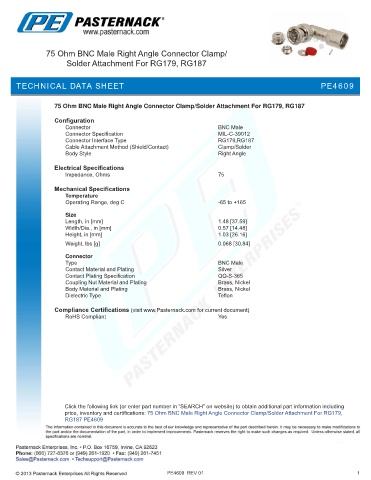

TECHNICAL DATA SHEET PE4609

75 Ohm BNC Male Right Angle Connector Clamp/Solder Attachment For RG179, RG187

Configuration
Connector BNC Male
Connector Specification MIL-C-39012
Connector Interface Type RG179,RG187
Cable Attachment Method (Shield/Contact) Clamp/Solder
Body Style Right Angle

Electrical Specifications
Impedance, Ohms 75

Mechanical Specifications
Temperature
Operating Range, deg C -65 to +165

Size
Length, in [mm] 1.48 [37.59]
Width/Dia., in [mm] 0.57 [14.48]
Height, in [mm] 1.03 [26.16]
.
Weight, lbs [g] 0.068 [30.84]
Connector
Type BNC Male
Contact Material and Plating Silver
Contact Plating Specification QQ-S-365
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: 75 Ohm BNC Male Right Angle Connector Clamp/Solder Attachment For RG179,
RG187 PE4609

PE4609 REV 01 1
