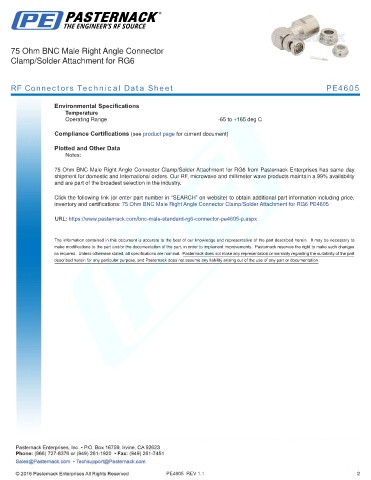

75 Ohm BNC Male Right Angle Connector
Clamp/Solder Attachment for RG6

RF Connectors Technical Data Sheet PE4605

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

75 Ohm BNC Male Right Angle Connector Clamp/Solder Attachment for RG6 from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability
and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Male Right Angle Connector Clamp/Solder Attachment for RG6 PE4605

URL: https://www.pasternack.com/bnc-male-standard-rg6-connector-pe4605-p.aspx

PE4605 REV 1.1 2
