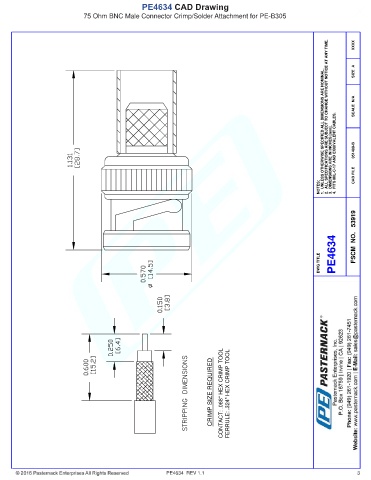

PE4634 CAD Drawing
75 Ohm BNC Male Connector Crimp/Solder Attachment for PE-B305
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 051409-B
NOTES: CAD FILE
DWG TITLE PE4634 FSCM NO. 53919
CRIMP SIZE REQUIRED CONTACT: .068" HEX CRIMP TOOL FERRULE: .324" HEX CRIMP TOOL
PE4634 REV 1.1 3
