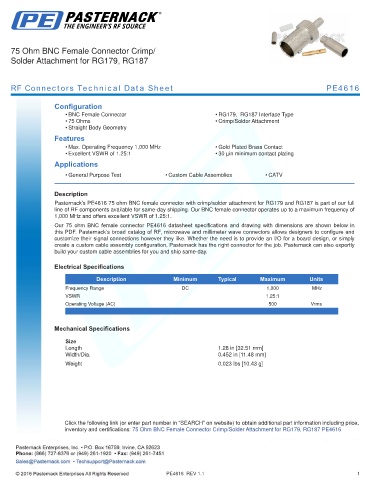

75 Ohm BNC Female Connector Crimp/
Solder Attachment for RG179, RG187

RF Connectors Technical Data Sheet PE4616

Configuration
• BNC Female Connector • RG179, RG187 Interface Type
• 75 Ohms • Crimp/Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 1,000 MHz • Gold Plated Brass Contact
• Excellent VSWR of 1.25:1 • 30 µin minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies • CATV
.
Description
Pasternack’s PE4616 75 ohm BNC female connector with crimp/solder attachment for RG179 and RG187 is part of our full
line of RF components available for same-day shipping. Our BNC female connector operates up to a maximum frequency of
1,000 MHz and offers excellent VSWR of 1.25:1.
Our 75 ohm BNC female connector PE4616 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.25:1
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications

Size
Length 1.28 in [32.51 mm]
Width/Dia. 0.452 in [11.48 mm]
.
Weight 0.023 lbs [10.43 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Female Connector Crimp/Solder Attachment for RG179, RG187 PE4616

PE4616 REV 1.1 1
