75 Ohm BNC Female Connector Clamp/
Solder Attachment for RG6

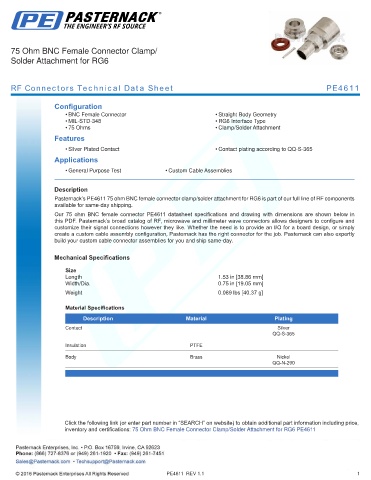

RF Connectors Technical Data Sheet PE4611

Configuration
• BNC Female Connector • Straight Body Geometry
• MIL-STD-348 • RG6 Interface Type
• 75 Ohms • Clamp/Solder Attachment
Features
• Silver Plated Contact • Contact plating according to QQ-S-365
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4611 75 ohm BNC female connector clamp/solder attachment for RG6 is part of our full line of RF components
available for same-day shipping.
Our 75 ohm BNC female connector PE4611 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.53 in [38.86 mm]
Width/Dia. 0.75 in [19.05 mm]
.
Weight 0.089 lbs [40.37 g]
.
Material Specifications
Description Material Plating
Contact Silver
QQ-S-365
Insulation PTFE

Body Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Female Connector Clamp/Solder Attachment for RG6 PE4611

PE4611 REV 1.1 1
