75 Ohm BNC Female Connector Clamp/
Solder Attachment For RG59

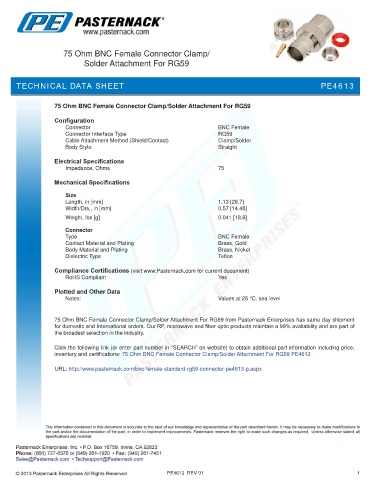

TECHNICAL DATA SHEET PE4613

75 Ohm BNC Female Connector Clamp/Solder Attachment For RG59

Configuration
Connector BNC Female
Connector Interface Type RG59
Cable Attachment Method (Shield/Contact) Clamp/Solder
Body Style Straight
Electrical Specifications
Impedance, Ohms 75

Mechanical Specifications

Size
Length, in [mm] 1.13 [28.7]
Width/Dia., in [mm] 0.57 [14.48]
.
Weight, lbs [g] 0.041 [18.6]

Connector
Type BNC Female
Contact Material and Plating Brass, Gold
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

75 Ohm BNC Female Connector Clamp/Solder Attachment For RG59 from Pasternack Enterprises has same day shipment
for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of
the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Female Connector Clamp/Solder Attachment For RG59 PE4613

URL: http://www.pasternack.com/bnc-female-standard-rg59-connector-pe4613-p.aspx

PE4613 REV 01 1
