75 Ohm BNC Female Connector Clamp/
Solder Attachment for RG179, RG187

RF Connectors Technical Data Sheet PE4615

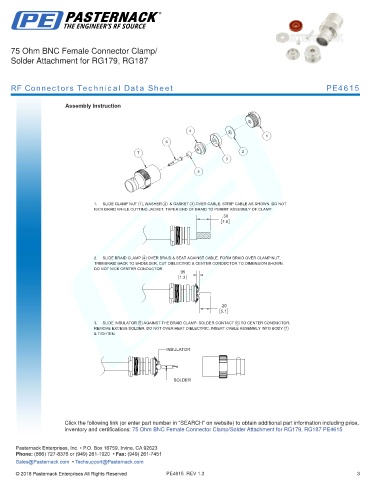

Assembly Instruction

4
1
6
7 2
3

5

1. SLIDE CLAMP NUT 1 , WASHER 2 & GASKET 3 OVER CABLE. STRIP CABLE AS SHOWN. DO NOT
NICK BRAID WHILE CUTTING JACKET. TAPER END OF BRAID TO PERMIT ASSEMBLY OF CLAMP.
.30
7.6

2. SLIDE BRAID CLAMP 4 OVER BRAID & SEAT AGAINST CABLE. FORM BRAID OVER CLAMP NUT.
TRIM BRAID BACK TO SHOULDER. CUT DIELECTRIC & CENTER CONDUCTOR TO DIMENSION SHOWN.
DO NOT NICK CENTER CONDUCTOR.
.05
1.3

.20
5.1
3. SLIDE INSULATOR 5 AGAINST THE BRAID CLAMP. SOLDER CONTACT 6 TO CENTER CONDUCTOR.
REMOVE EXCESS SOLDER. DO NOT OVER HEAT DIELECTRIC. INSERT CABLE ASSEMBLY INTO BODY 7
& TIGHTEN.

INSULATOR

SOLDER
