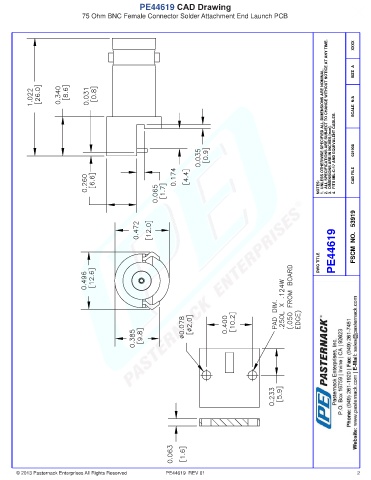

PE44619 CAD Drawing
75 Ohm BNC Female Connector Solder Attachment End Launch PCB

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 021908

NOTES: CAD FILE

PE44619 FSCM NO. 53919

DWG TITLE

© 2013 Pasternack Enterprises All Rights Reserved PE44619 REV 01 2
