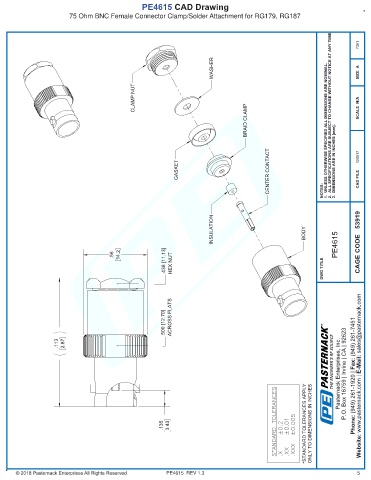

PE4615 CAD Drawing
75 Ohm BNC Female Connector Clamp/Solder Attachment for RG179, RG187

7361

WASHER SIZE A

CLAMP NUT SCALE N/A

BRAID CLAMP 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.

CENTER CONTACT NOTES: CAD FILE
GASKET 3. DIMENSIONS ARE IN INCHES [mm]. 120617

INSULATION BODY

PE4615 CAGE CODE 53919
.56 14.2
.438 [11.13] HEX NUT DWG TITLE

.500 [12.70] ACROSS FLATS R
Pasternack does not make Phone: (949) 261-1920 | Fax: (949) 261-7451

THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Website: www.pasternack.com | E-Mail: sales@pasternack.com
.113 2.87

STANDARD TOLERANCES

.XXX ±0.005

.XX ±0.01
.135 3.43 *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES -
.X ±0.2

any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE4615 REV 1.3 5
