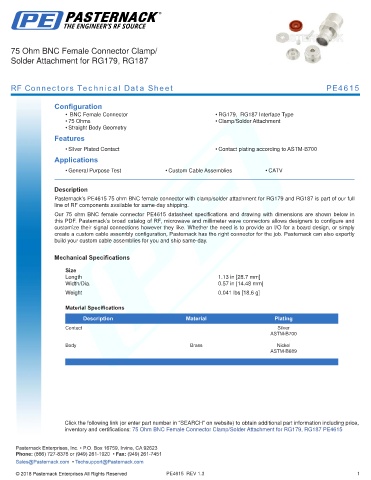

75 Ohm BNC Female Connector Clamp/
Solder Attachment for RG179, RG187

RF Connectors Technical Data Sheet PE4615

Configuration
• BNC Female Connector • RG179, RG187 Interface Type
• 75 Ohms • Clamp/Solder Attachment
• Straight Body Geometry
Features
• Silver Plated Contact • Contact plating according to ASTM-B700
Applications
• General Purpose Test • Custom Cable Assemblies • CATV
.
Description
Pasternack’s PE4615 75 ohm BNC female connector with clamp/solder attachment for RG179 and RG187 is part of our full
line of RF components available for same-day shipping.
Our 75 ohm BNC female connector PE4615 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.13 in [28.7 mm]
Width/Dia. 0.57 in [14.48 mm]
.
Weight 0.041 lbs [18.6 g]
.
Material Specifications
Description Material Plating
Contact Silver
ASTM-B700
Body Brass Nickel
ASTM-B689
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Female Connector Clamp/Solder Attachment for RG179, RG187 PE4615 -
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE4615 REV 1.3 1
