75 Ohm BNC Female Bulkhead Connector Crimp/
Solder Attachment For 735A, .480 inch D Hole

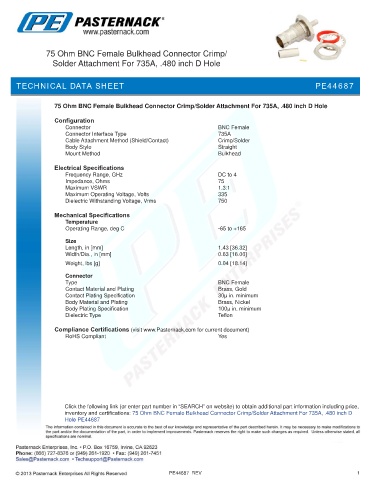

TECHNICAL DATA SHEET PE44687

75 Ohm BNC Female Bulkhead Connector Crimp/Solder Attachment For 735A, .480 inch D Hole

Configuration
Connector BNC Female
Connector Interface Type 735A
Cable Attachment Method (Shield/Contact) Crimp/Solder
Body Style Straight
Mount Method Bulkhead

Electrical Specifications
Frequency Range, GHz DC to 4
Impedance, Ohms 75
Maximum VSWR 1.3:1
Maximum Operating Voltage, Volts 335
Dielectric Withstanding Voltage, Vrms 750

Mechanical Specifications
Temperature
Operating Range, deg C -65 to +165

Size
Length, in [mm] 1.43 [36.32]
Width/Dia., in [mm] 0.63 [16.00]
.
Weight, lbs [g] 0.04 [18.14]
Connector
Type BNC Female
Contact Material and Plating Brass, Gold
Contact Plating Specification 30µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 100µ in. minimum
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Female Bulkhead Connector Crimp/Solder Attachment For 735A, .480 inch D
Hole PE44687

PE44687 REV 1
