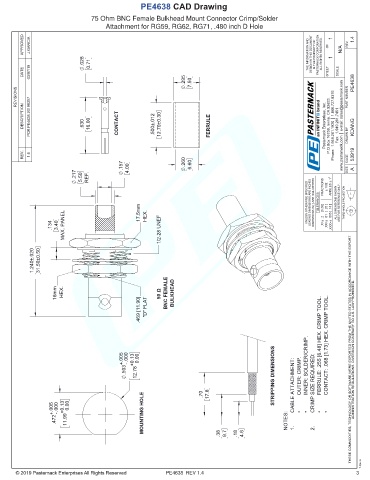

PE4638 CAD Drawing
75 Ohm BNC Female Bulkhead Mount Connector Crimp/Solder
Attachment for RG59, RG62, RG71, .480 inch D Hole

APPROVED J.GARCIA 1 N/A REV 1.4

.028 0.71 THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. SHEET OF 1
DATE 03/07/19 SCALE
.295 7.50 PE4638
REVISIONS PART NUMBER

DESCRIPTION PCR PE4638 20190307 .630 16.00 CONTACT .500±.012 12.70±0.30 FERRULE Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com KDANG

DRAWN BY
REV. 1.4 CAGE 53919
.157 4.00 .260 6.60 SIZE A
.217 5.50 REF. FRACTIONS ± 1/32 ANGLES ± 1°

MAX. PANEL 17.5mm HEX. UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: .2 [5.08] .X=± .01 [ .25 ] .XX=± .005 [ .13 ] .XXX=± ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

.134 3.40 1/2-28 UNEF

1.240±.020 31.50±0.50

16mm HEX. 50 Ω BNC FEMALE BULKHEAD
.469 [11.90] "D" FLAT

.503 +.005 -.000 12.78 +0.13 0.00 INNER: SOLDER/CRIMP. FERRULE: .255 [6.48] HEX. CRIMP TOOL. CONTACT: .068 [1.73] HEX. CRIMP TOOL. THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

STRIPPING DIMENSIONS CABLE ATTACHMENT: OUTER: CRIMP. CRIMP SIZE REQUIRED:

.70 17.8
.472 +.005 -.000 11.99 +0.13 0.00 MOUNTING HOLE NOTES: • • • •

2.
1. Pasternack does not make -
9.7
.18
4.6
.38
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

T-Rev.A
PE4638 REV 1.4 3
